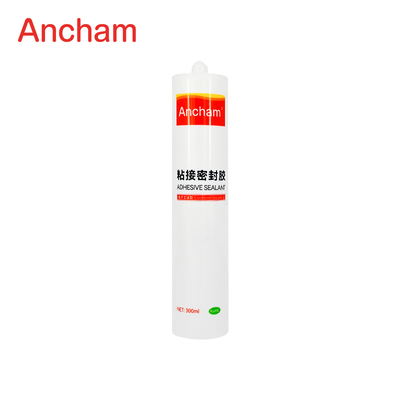

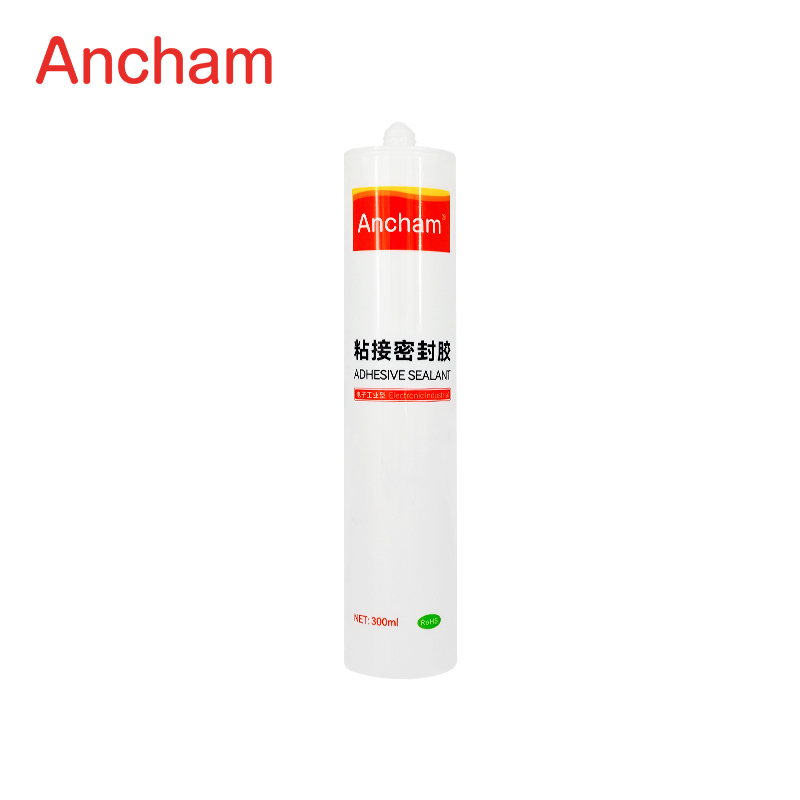

AS32(03) 300ml Thermally Conductive Silicone Gel for Power Modules

AS32(03) 300ml Thermally Conductive Silicone Gel for Power Modules

AS32(03) 300ml Thermally Conductive Silicone Gel for Power Modules

Brand Name: Ancham
Model Number: AS32(03) 300ml
MOQ: 100
Price: $35-45
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Main Material:
Silicone
Appearance:
White Paste
Capacity:
300ml
Packing Quantity:
30 PCS
Shelf Life:
12 Months
Thermal Conductivity:
3.1±0.1 W/m*K
Viscosity:
250000±50000 MPa.s
Specific Gravity:
3.0±0.1 G/cm^3
Cure Schedule:
20~30 Min @ 100℃
Hardness:
60±5 Shore 00
Temperature Range:
-50~200℃
Dielectric Strength:
18 KV/mm
Volume Resistivity:
5.8x10^14 Ω.cm
Storage Temperature:
-25~-10℃
Flammability Rating:
UL94-V0
Highlight:

thermally conductive silicone gel for power modules

,

300ml electronic adhesive with warranty

,

silicone gel for consumer electronics

Product Description
Ancham AS32(03) 300ML Electronic E-gel Flexible Thermally Conductive Silicone Gap Filler Gel for Chip Power Module With UL94-V0
Attribute Value
Classification Other Adhesives
Main Raw Material Silicone
Usage Power modules
Type Silicone
Appearance White Paste
Capacity 300ml
Packing 30 PCS
Shelf life 12 Months
Product Description
One-component silicone thermally conductive caulk, heated and cured into a flexible gel, offering anti-vibration properties with low thermal resistance for optimal heat conduction. Features no drooping flow, excellent moisture resistance, aging resistance, and long-term durability without cracking. Ideal as a thermally conductive interface material.
Key Features
  • Thermal conductivity: 3.1W/m*K
  • Low stress application
  • High and low temperature resistance
  • Excellent electrical insulation properties
  • Compliant with UL94-V0 safety standard
  • RoHS compliant
Applications
Designed for heat conduction in heat-generating semiconductor ICs or magnetic components including power modules, power management modules, electronic control modules, and communication/transmission modules.
Technical Specifications
Property AS32(03)
Appearance White
Viscosity @ 25℃ 250000±50000 mPa.s
Specific Gravity @ 25℃ 3.0±0.1 g/cm³
Cure Schedule 20~30 min @ 100℃
Hardness 60±5 Shore 00
Thermal Conductivity 3.1±0.1 W/m*K
Useful Temperature Ranges -50~200℃
Dielectric Strength 18 kV/mm
Volume Resistivity 5.8x10¹⁴ Ω.cm
Shelf Life 12 months @ -25~-10℃
AS32(03) 300ml Thermally Conductive Silicone Gel for Power Modules 0 AS32(03) 300ml Thermally Conductive Silicone Gel for Power Modules 1 AS32(03) 300ml Thermally Conductive Silicone Gel for Power Modules 2
Company Information
Who are we?
Based in Guangdong, China since 2002, we serve domestic and international markets including Southeast Asia, North America, South America, and Europe. Our team consists of 51-100 professionals dedicated to quality adhesive solutions.
How do we guarantee quality?
Strict quality control measures including pre-production samples and final inspection before shipment ensure consistent product excellence.
What products do we offer?
Comprehensive range including Epoxy/Polyurethane/Acrylic Adhesives, Silicone Sealants, Potting Compounds, Thermally Conductive Adhesives, and Conformal Coatings.
Why choose us?
Ancham specializes in electronic adhesives with extensive expertise in epoxy resins, acrylates, urethanes, and silicones. Our capabilities include:
  • 100+ testing equipment for quality assurance
  • 150+ proven product formulations
  • 3500 tons annual production capacity
What services do we provide?
Flexible solutions including multiple delivery terms (FOB, CFR, CIF, etc.), payment options (T/T, Credit Card, PayPal), and multilingual support in English, Chinese, German, French, and Korean.
