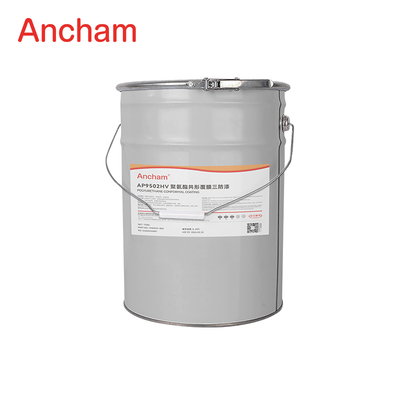

15KG Clear Polyurethane Conformal Coating for PCB Protection

15KG Clear Polyurethane Conformal Coating for PCB Protection

15KG Clear Polyurethane Conformal Coating for PCB Protection

Brand Name: Ancham
Model Number: AP9502HV 15KG
MOQ: 6
Price: $305-325
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Main Material:
Polyurethane
Appearance:
Clear Liquid
Capacity:
15KG
Shelf Life:
12 Months
Specific Gravity:
0.85±0.05 G/cm^3
Viscosity:
65-80S
Temperature Range:
-40~135℃
Adhesion:
0
Volume Resistivity:
2.0x10^15 Ω.cm
High Temp Resistance:
135℃
Insulation Performance:
Excellent
Chemical Resistance:
Excellent
Curing Method:
Room Temperature
Process Compatibility:
Impregnation, Spraying, Brushing
Benzene Content:
Free
Highlight:

15KG polyurethane conformal coating

,

clear PCB protective coating

,

electronic adhesive with warranty

Product Description
Ancham AP9502HV 15KG Clear Electronic Conformal Coating for PCB Protection With UL94-V0 Benzene-free
Product Specifications
Classification Other Adhesives
Main Raw Material Polyurethane
Usage Porous substrates and PCB
Type Polyurethane
Appearance Clear Liquid
Capacity 15KG
Shelf life 12 Months
Product Description

One-component polyurethane conformal coating, benzene solvent-free, room temperature curing, good wettability to the substrate surface, no bubbles after curing. Suitable for impregnation, spraying, brushing and other processes, can provide moisture and chemical resistance protection for uneven surfaces, this product has superior high temperature resistance and electrical insulation performance.

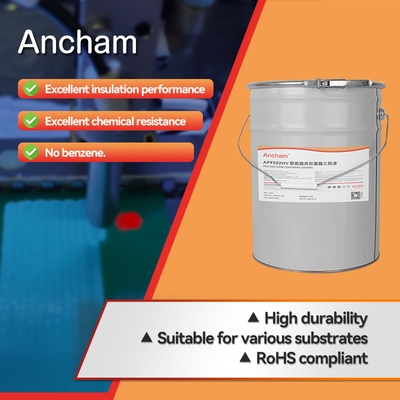

Key Features
  • High temperature resistance of 135℃
  • Excellent insulation performance
  • No benzene
  • Excellent chemical resistance

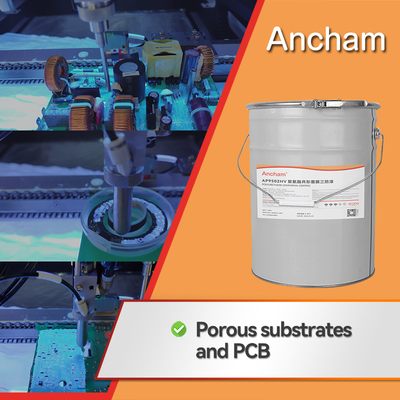

Applications

Used for coating protection of porous substrates and PCB.

Technical Data
TYPICAL PROPERTIES AP9502HV
Appearance Clear
Specific Gravity @ 23℃ 0.85±0.05 g/cm³
Viscosity (4mm-cup @ 23℃) 65-80S
Useful Temperature Ranges -40~135℃
Adhesion 0
Volume Resistivity 2.0x10¹⁵ Ω.cm
Shelf Life (8~28℃) 12 months
15KG Clear Polyurethane Conformal Coating for PCB Protection 0 15KG Clear Polyurethane Conformal Coating for PCB Protection 1 15KG Clear Polyurethane Conformal Coating for PCB Protection 2
Company Information
Who are we?

We are based in Guangdong, China, established in 2002, serving Domestic Market (82%), Southeast Asia (10%), North America (4%), South America (1.2%), Eastern Europe (1%), Mid East (0.8%), Western Europe (0.5%), and Southern Europe (0.5%). Our team consists of 51-100 professionals.

How do we guarantee quality?

We always provide pre-production samples before mass production and conduct final inspection before shipment.

What products do we offer?

Epoxy/Polyurethane/Acrylic Adhesive, Silicone Sealant, Potting Compound, Thermally Conductive adhesive, Conformal Coating.

Why choose us?

Ancham's electronic adhesive products cover bonding, sealing, thermal management, potting, and coating protection. We offer 100+ testing equipment, 150+ proven products, and 3500 tons annual production capacity.

What services do we provide?

Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES. Payment Options: T/T, Credit Card, PayPal, Western Union in USD, EUR, JPY, HKD, CNY, CHF. Languages: English, Chinese, German, French, Korean.
