4KG Clear Polyurethane Conformal Coating for PCB Protection

4KG Clear Polyurethane Conformal Coating for PCB Protection

4KG Clear Polyurethane Conformal Coating for PCB Protection

Brand Name: Ancham
Model Number: AP9502HV 4KG
MOQ: 20
Price: $90-110
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Main Material:
Polyurethane
Appearance:
Clear Liquid
Capacity:
4KG
Specific Gravity:
0.85±0.05 G/cm^3
Viscosity:
65-80S
Temperature Range:
-40~135℃
Adhesion:
0
Volume Resistivity:
2.0x10^15 Ω.cm
Shelf Life:
12 Months
High Temp Resistance:
135℃
Insulation Performance:
Excellent
Chemical Resistance:
Excellent
Curing Method:
Room Temperature
Benzene Content:
Free
Application Methods:
Impregnation, Spraying, Brushing
Highlight:

4KG polyurethane conformal coating

,

clear PCB protective coating

,

electronic adhesive with warranty

Product Description

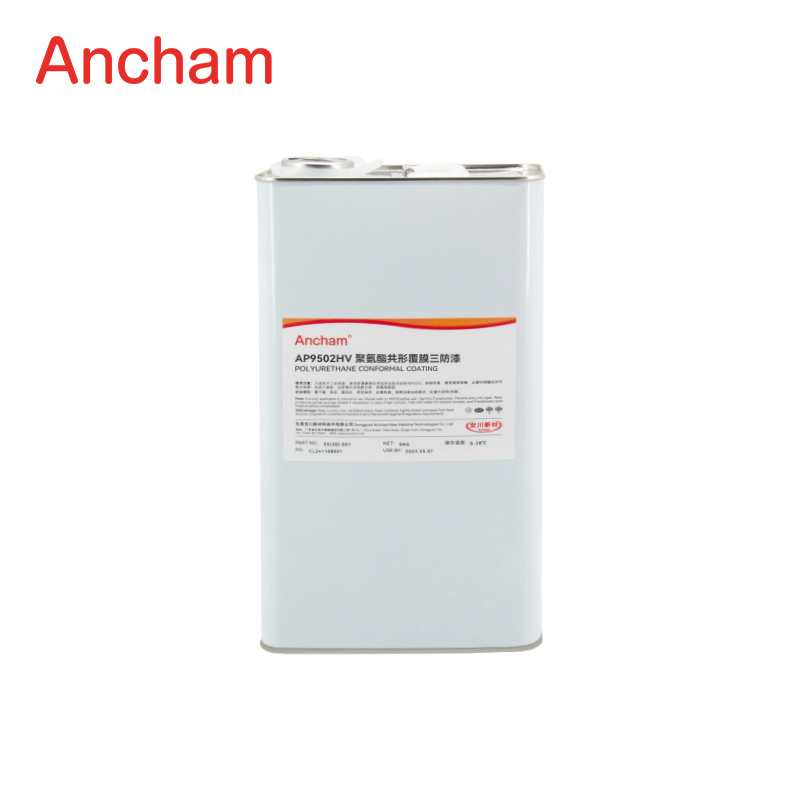

Ancham AP9502HV 4KG Clear Electronic Polyurethane Conformal Coating for PCB Protection With UL94-V0 Benzene-free
Product Specifications
Attribute Value
Classification Other Adhesives
Main Raw Material Polyurethane
Usage Porous substrates and PCB
Type Polyurethane
Appearance Clear Liquid
Capacity 4KG
Packing 4 PCS
Shelf life 12 Months
Product Description
One-component polyurethane conformal coating, benzene solvent-free, room temperature curing with excellent wettability to substrate surfaces and bubble-free curing. Suitable for impregnation, spraying, and brushing applications. Provides superior moisture and chemical resistance protection for uneven surfaces, with outstanding high temperature resistance and electrical insulation properties.
Key Features
  • High temperature resistance up to 135℃
  • Excellent electrical insulation performance
  • Benzene-free formulation
  • Superior chemical resistance
Applications
Ideal for coating protection of porous substrates and printed circuit boards (PCBs).
Technical Specifications
Property AP9502HV
Appearance Clear
Specific Gravity @ 23℃ 0.85±0.05 g/cm³
Viscosity (4mm-cup @ 23℃) 65-80S
Useful Temperature Range -40~135℃
Adhesion 0
Volume Resistivity 2.0x10¹⁵ Ω.cm
Shelf Life (8~28℃) 12 months
Product Images
4KG Clear Polyurethane Conformal Coating for PCB Protection 0 4KG Clear Polyurethane Conformal Coating for PCB Protection 1 4KG Clear Polyurethane Conformal Coating for PCB Protection 2
Company Information
About Us
Based in Guangdong, China since 2002, we serve global markets including Domestic (82%), Southeast Asia (10%), North America (4%), and other regions. Our team consists of 51-100 professionals dedicated to quality adhesive solutions.
Quality Assurance
Strict quality control measures including pre-production samples and final inspection before shipment ensure consistent product excellence.
Product Range
We specialize in epoxy/polyurethane/acrylic adhesives, silicone sealants, potting compounds, thermally conductive adhesives, and conformal coatings.
Why Choose Us
Ancham offers comprehensive electronic adhesive solutions with:
  • 100+ testing equipment for quality control
  • 150+ proven products
  • 3500 tons annual production capacity
Services
We support multiple delivery terms (FOB, CFR, CIF, etc.), payment methods (T/T, Credit Card, PayPal), and currencies (USD, EUR, JPY). Our team communicates in English, Chinese, German, French, and Korean.
