AS42 25KG Thermally Conductive Silicone Potting Compound UL94-V0

Name: AS42 25KG Thermally Conductive Silicone Potting Compound UL94-V0
Brand: DongGuan Ancham New Material Technologies Co.，Ltd.
SKU: AS42
Price: 190.00 USD
Availability: InStock

Brand Name:	Ancham
Model Number:	AS42
MOQ:	100
Price:	$180-200

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Classification:

Other Adhesives

Main Raw Material:

Silicone

Appearance:

Gray Liquid

Capacity:

Part A: 25KG, Part B: 25KG

Shelf Life:

6 Months

Mixing Ratio:

1:1 @ 25℃

Viscosity:

3500±1000 MPa.s @ 25℃

Specific Gravity:

1.55±0.05 G/cm^3 @ 25℃

Initial Cure Time:

2~3h @ 25℃

Full Cure Time:

24h @ 25℃, 30min @ 80℃

Hardness:

55±3 Shore A

Thermal Conductivity:

0.7 W/m*K

Useful Temperature Ranges:

-40~200 ℃

Dielectric Strength:

＞20 KV/mm

Volume Resistivity:

2.33x10^13 Ω.cm

Highlight:

25KG thermally conductive potting compound

UL94-V0 silicone potting adhesive

electronic adhesive with thermal conductivity

Product Description

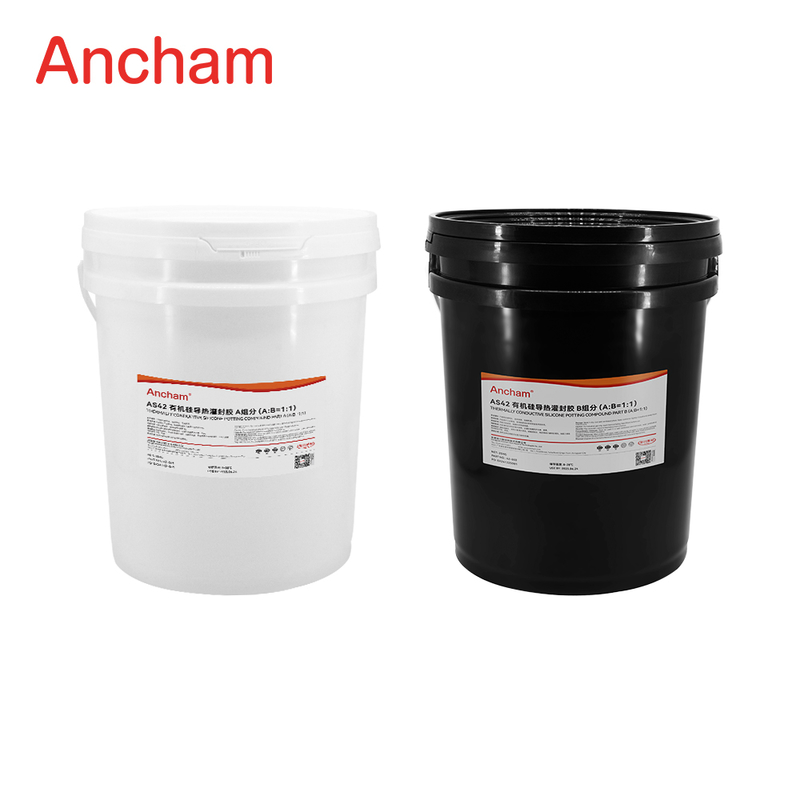

Ancham AS42 25KG AB Gray Electronic Thermally Conductive Silicone Potting Compound for Power Module Sensor With UL94-V0

Attribute	Value
Classification	Other Adhesives
Main Raw Material	Silicone
Usage	Power supply module
Appearance	Gray Liquid
Capacity	Part A: 25KG, Part B: 25KG
Shelf life	6 Months

DESCRIPTION

Two-component silicone thermally conductive potting compound that vulcanizes at room temperature or high temperature. Cures to form an elastic thermally conductive insulating gel with smooth surface and no volatile emissions. Features low viscosity with excellent flowability and low stress characteristics to protect electronic devices from mechanical stress impact. Offers good adhesion and excellent insulating properties, maintaining performance in temperature ranges from -40 to 200℃ without shelling.

FEATURES

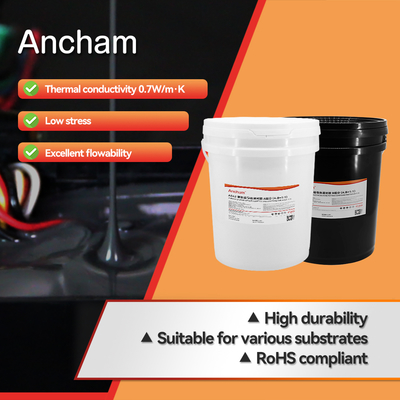

Thermal conductivity 0.7W/m*K
Low stress characteristics
Excellent flowability
Ageing resistance
UL94-V0 compliant
RoHS, REACH compliant, halogen free

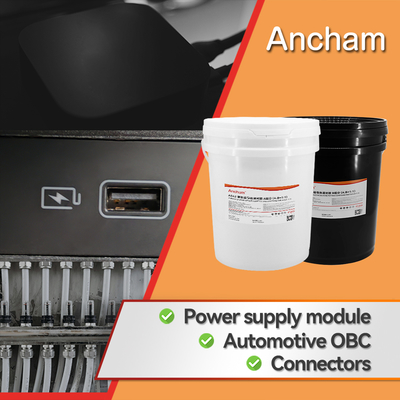

APPLICATIONS

Heating power module and power supply module potting
Automotive OBC, DC module encapsulation protection
Photovoltaic and wind energy industry connectors, inverters and control modules potting

TECHNICAL DATA

TYPICAL PROPERTIES	AS42
Mixing Ratio @ 25℃	1:1
Appearance	Gray
Viscosity @ 25℃	3500±1000 mPa.s
Specific Gravity @ 25℃	1.55±0.05 g/cm^3
Cure Schedule @ 2cm	Initial cure time 2~3h @ 25℃ Full cure time 24h @ 25℃ Full cure time 30min @ 80℃
Hardness	55±3 Shore A
Thermal Conductivity	0.7 W/m*K
Useful Temperature Ranges	-40~200 ℃
Dielectric Strength	＞20 kV/mm
Volume Resistivity	2.33x10^13 Ω.cm
Shelf Life (8~28℃)	6 months

FREQUENTLY ASKED QUESTIONS

1. Who are we?

We are based in Guangdong, China, established in 2002. Our primary markets include Domestic Market (82.00%), Southeast Asia (10.00%), North America (4.00%), with additional global distribution. Our team consists of 51-100 professionals.

2. How can we guarantee quality?

We conduct pre-production samples before mass production and perform final inspections before shipment to ensure product quality.

3. What can you buy from us?

We specialize in epoxy/polyurethane/acrylic adhesives, silicone sealants, potting compounds, thermally conductive adhesives, and conformal coatings.

4. Why should you buy from us not from other suppliers?

Ancham offers comprehensive electronic adhesive solutions including bonding, sealing, thermal management, potting, and coating protection. Our capabilities include 100+ testing equipment, 150+ proven products, and 3500 tons annual production capacity.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currency: USD, EUR, JPY, HKD, CNY, CHF
Accepted Payment Type: T/T, Credit Card, PayPal, Western Union
Languages Spoken: English, Chinese, German, French, Korean
