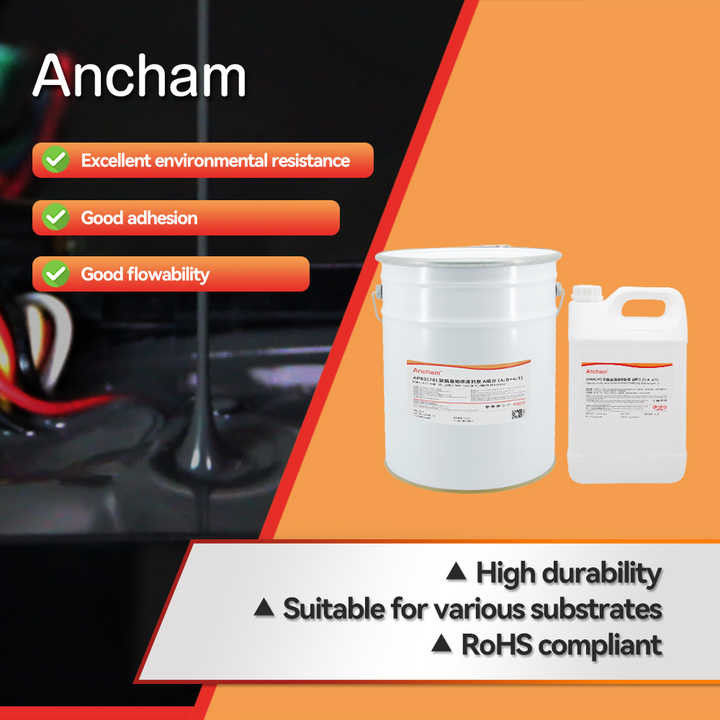

Polyurethane Electrical Potting Compound AB Black Potting Glue

Brand Name:	Ancham
Model Number:	AP83(70)
MOQ:	100KG
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS Reach

Uv Resistance:

Excellent

Hardness:

High

Material:

Epoxy

Thermal Conductivity:

Low

Part B Color:

Colorless

Color:

Clear

Mixing Weight Ratio:

4:1

Viscosity @ 25℃:

1450±300 MPa.s

Initial Cure Time:

9~15h @ 25˚C / 0.5~1h @ 80℃

Full Cure Time:

168h @ 25℃

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

25kg:5kg

Supply Ability:

50000kg/month

Highlight:

heat conductive adhesive 25KG

electrical potting compound AB

Black potting glue

Product Description

25KG AB Black Thermally Conductive Electronic Polyurethane Potting Compound

TECHNICAL DATA

TYPICAL PROPERTIES	AP83 (70)
Mixing Ratio @ 25℃	4:1
Appearance	Black
Viscosity @ 25℃	1450±300 mPa.s
Specific Gravity @ 25℃	1.5±0.05 g/cm^3
Cure Schedule @ 150g	Initial cure time 9~15h @ 25˚C / 0.5~1h @ 80℃ Full cure time 168h @ 25℃
Hardness	70±5 Shore D
Lap Shear Strength @ 25℃	6 Mpa ABS/ABS
Useful Temperature Ranges	-40~150℃
Dielectric Strength	≥18 kV/mm
Volume Resistivity	5.0x10^13 Ω.cm
Shelf Life (15~25℃)	6 months

1. Two-Component System
This is a two-component polyurethane insulating potting compound that cures at room temperature, with the ability for accelerated curing when exposed to heat.

2. Low Mixed Viscosity
The compound features low mixed viscosity, allowing for easy application and optimal flow into intricate areas.

3. Excellent Bubble-Release Properties
It provides excellent bubble-release characteristics, reducing the risk of air entrapment during the curing process for a high-quality finish.

4. High Mechanical Strength
After curing, it achieves high mechanical strength, ensuring durability and reliability in demanding applications.

5. Versatile Adhesion
The potting compound adheres effectively to a variety of substrates, including plastics and metals, making it well-suited for automated dispensing processes.

6. Superior Electrical Insulation
With outstanding electrical insulation properties and stability in harsh environments, it complies with UL94 V0 flammability standards, making it ideal for potting protection in electronic and electrical applications.

FEATURES

1. Good flowability.

2. Good adhesion.

3. Excellent environmental resistance.

4. Comply with RoHS, Reach.

5. UL94 V0 compliant.

APPLICATIONS

1. Potting of capacitors, wire harnesses, connectors, circuit boards.

2. Potting protection for transformers, instrumentation, ignition controllers, sensors.

3. motor motor, power tool control module, power module insulation protection.
