Silicone Thermal Potting Compound Low Stress Material AB Glue

Brand Name:	Ancham
Model Number:	AS42(10)L
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0 RoHS REACH

Hardness:

45±5 Shore A

Appearance:

Grey

Thermal Conductivity:

0.6~0.7 W/m·K

Viscosity @ 25℃:

3500±1000 MPa.s

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

25kg

Supply Ability:

50000kg/month

Highlight:

45Shore A thermal potting compound

thermal potting compound Low Stress

Low Stress potting material for pcb

Product Description

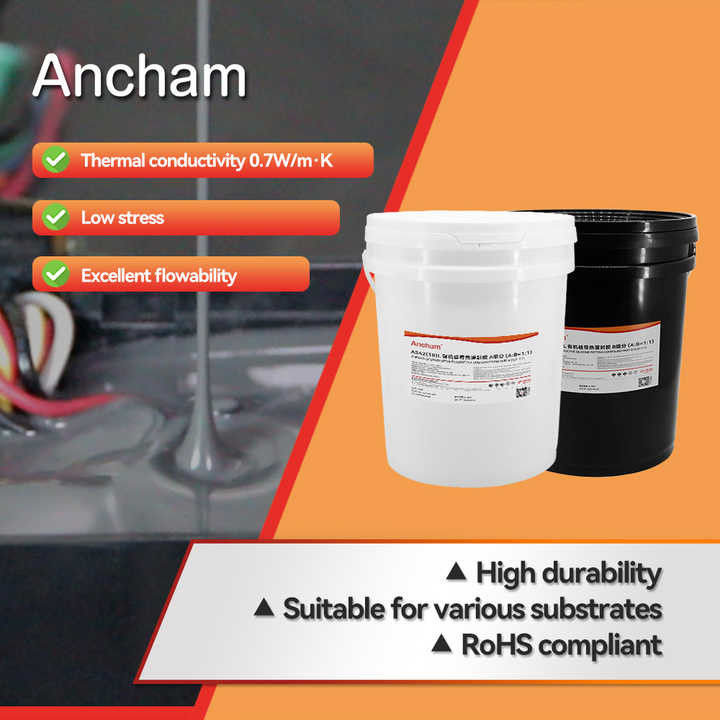

25KG Electronic Thermally Conductive Silicone Potting Compound With Low Stress.

DESCRIPTION

Two-component silicone thermally conductive potting compound, vulcanized at room temperature or high temperature. Cured to form an elastic thermally conductive insulating gel, smooth surface, no volatiles generated. Low viscosity, good fluidity. Low stress characteristics, so that electronic devices from mechanical stress impact. Good adhesion, excellent insulating properties, in the temperature range of -40 to 200 ℃, without shelling.

FEATURES

1. Thermal conductivity 0.7W/m·K.

2. Low stress.

3. Excellent flowability.

4. Ageing resistance.

5. UL94-V0 compliant.

6. RoHS, REACH compliant, halogen free.

APPLICATIONS

1. Heating power module, power supply module potting.

2. Automotive OBC, DC module and other encapsulation protection.

3. Photovoltaic, wind energy industry connectors, inverters and other control modules potting.

TECHNICAL DATA

TYPICAL PROPERTIES	AS42(10)L
Mixing Ratio @ 25℃	1:1
Appearance	Gray
Viscosity @ 25℃	3500±1000 mPa.s
Specific Gravity @ 25℃	1.58±0.05 g/cm^3
Cure Schedule @ 2cm	Initial cure time 3~6h @ 25℃ Full cure time 24h @ 25℃ Full cure time 30min @ 80℃
Hardness	45±5 Shore A
Thermal Conductivity	0.6~0.7 W/m·K
Useful Temperature Ranges	-40~200℃
Dielectric Strength	＞20 kV/mm
Volume Resistivity	2.15x10^13 Ω.cm
Shelf Life (8~28℃)	6 months
