20kV/mm Silicone Conformal polyurethane pcb board Coating Compound UL94 V0

Brand Name:	Ancham
Model Number:	AS35(50)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0

Dielectric Strength:

≥20 KV/mm

Hardness:

30±5 Shore A

Flame Resistance:

UL94V-0

Useful Temperature Ranges:

-50~200℃

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

5kg 20kg

Supply Ability:

50000kg

Highlight:

20kV/mm pcb board coating

20kV/mm pcb coating process

polyurethane pcb coating UL94 V0

Product Description

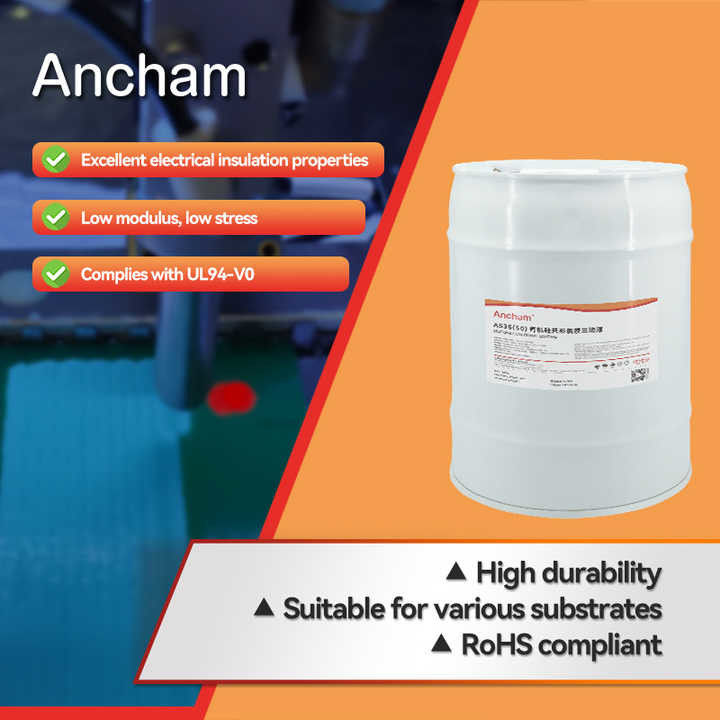

20KG Clear Electronic Silicone Conformal Coating Compound With UL94-V0.

DESCRIPTION

One-component silicone conformal coating, easy to flow, easy to defoam, can be applied in thick layers, excellent substrate surface wettability. Fast curing by heating, smooth surface without bubbles after curing. RoHS compliant, UL94 V0.

FEATURES

1. No solvent.

2. Low modulus, low stress.

3. Excellent electrical insulation properties.

4. Excellent high and low temperature resistance.

5. Support fluorescence detection.

6. Complies with UL94 V0.

APPLICATIONS

Used for coating protection of various circuit systems, porous substrates and printed circuit boards.

TECHNICAL DATA

TYPICAL PROPERTIES	AS35(50)
Appearance	Clear (with fluorescence)
Specific Gravity @ 25℃	1.0±0.05 g/cm^3
Viscosity @ 25℃	850±150 mPa.s
Recommended Film Thickness	50-200um
Hardness	30±5 Shore A
Adhesion	0
Self-Extinguishing	UL94-V0
Useful Temperature Ranges	-50~200℃
Dielectric Strength	≥20 kV/mm
Volume Resistivity	7.0x10^13 Ω.cm
Shelf Life (8~28℃)	6 moths

FAQ

1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(82.00%),Southeast Asia(10.00%),North America(4.00%),South America(1.20%),Eastern Europe(1.00%),Mid East(0.80%),Western Europe(0.50%),Southern Europe(0.50%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Epoxy/Polyurethane/Acrylic Adhesive,Silicone Sealant,Potting Compound,Thermally Conductive adhesive,Conformal Coating
4. why should you buy from us not from other suppliers?
Ancham's electronic adhesive products involve epoxy resins, acrylates, urethanes, and silicones, covering bonding, sealing, thermal management, potting, and coating protection. 100+ Testing equipment 150+ Proven Products 3500 Tons annual capacity
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,German,French,Korean
