Electrical Insulating PCB Coating Silicone Conformal Coating

Brand Name:	Ancham
Model Number:	AS35(50)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0 RoHS

Hardness:

30±5 Shore A

Useful Temperature Ranges:

-50~200℃

Flame Resistance:

UL94V-0

Viscosity @ 25℃:

850±150 MPa.s

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

5kg 20kg

Supply Ability:

50000kg

Highlight:

850mPa.s PCB Coating

Electrical Insulating Silicone Conformal Coating

850mPa.s Silicone Conformal Coating

Product Description

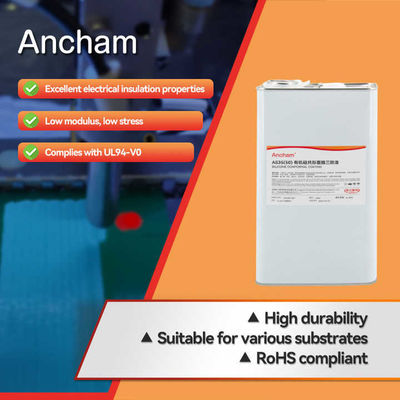

5KG Clear Electrical Insulating Silicone Conformal Coating With Good Adhesion.

DESCRIPTION

One-component silicone conformal coating, easy to flow, easy to defoam, can be applied in thick layers, excellent substrate surface wettability. Fast curing by heating, smooth surface without bubbles after curing. RoHS compliant, UL94 V0.

FEATURES

1. No solvent.

2. Low modulus, low stress.

3. Excellent electrical insulation properties.

4. Excellent high and low temperature resistance.

5. Support fluorescence detection.

6. Complies with UL94 V0.

APPLICATIONS

Used for coating protection of various circuit systems, porous substrates and printed circuit boards.

TECHNICAL DATA

TYPICAL PROPERTIES	AS35(50)
Appearance	Clear (with fluorescence)
Specific Gravity @ 25℃	1.0±0.05 g/cm^3
Viscosity @ 25℃	850±150 mPa.s
Recommended Film Thickness	50-200um
Hardness	30±5 Shore A
Adhesion	0
Self-Extinguishing	UL94-V0
Useful Temperature Ranges	-50~200℃
Dielectric Strength	≥20 kV/mm
Volume Resistivity	7.0x10^13 Ω.cm
Shelf Life (8~28℃)	6 moths
