20KG PCB Conformal Coating Clear UV/Moisture Curing Electronic Acrylic

Name: 20KG PCB Conformal Coating Clear UV/Moisture Curing Electronic Acrylic
Brand: DongGuan Ancham New Material Technologies Co.，Ltd.
SKU: AC55(60)
Availability: InStock

Brand Name:	Ancham
Model Number:	AC55(60)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0

Type:

Electronic Adhesive

Useful Temperature Ranges:

-40~125 ℃

Adhesion:

Self-Extinguishing:

UL94V-0

Country Of Origin:

China

Packaging Details:

5kg 20kg

Supply Ability:

50000kg

Highlight:

minus40 degree printed circuit board coating

125 degree printed circuit board coating

OEM conformal coating printed circuit boards

Product Description

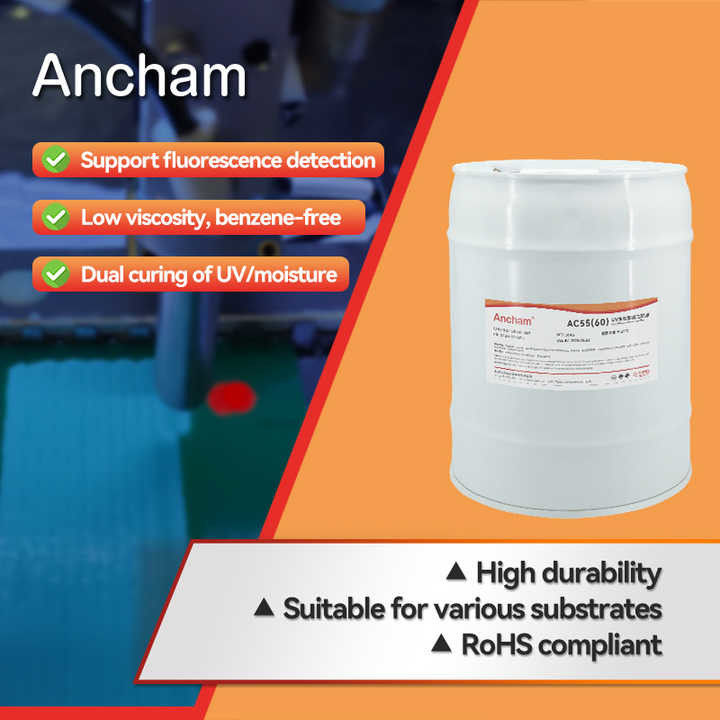

20KG Clear UV/Moisture Curing Electronic Acrylic Conformal Coating for PCB.

DESCRIPTION

One-component, dual-cure coating material with rapid UV light curing and moisture curing of un-UV-illuminated coatings. Fluoresces under UV light for easy coating layer inspection.AC55(60) has excellent chemical and moisture resistance.

FEATURES

1.Dual curing of UV/moisture.

2.Support fluorescence detection.

3.Low viscosity, benzene-free.

4.Excellent chemical resistance, high temperature and high humidity resistance.

5.Flame retardant in accordance with UL94-V0.

APPLICATIONS

Used for coating protection of various circuit systems, porous substrates and printed circuit boards.

TECHNICAL DATA

TYPICAL PROPERTIES	AC55 (60)
Appearance	Clear (with fluorescence)
Specific Gravity @ 25 ℃	1.05±0.5 g/cm^3
Viscosity @ 25 ℃	650±150 mPa.s
Recommended Film Thickness	25~125um
Hardness	70±5 Shore D
Adhesion	0
Self-Extinguishing	UL94-V0
Useful Temperature Ranges	-40~125 ℃
Dielectric Strength	＞14 kV/mm
Volume Resistivity	2.1x10^12 Ω.cm
Shelf Life(8~28℃)	6 months
