UL94V0 Electronic Silicone Potting Compound Aging Resistant Thermal Conductive Glue

Brand Name:	Ancham
Model Number:	AS42(16)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0 RoHS REACH

Mix Ratio:

1:1

Thermal Conductivity:

1.6±0.1 W/m-K

Hardness:

65±10 Shore 00

Dielectric Strength:

12 KV/mm

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

25kg

Supply Ability:

50000kg/month

Highlight:

UL94 V0 Potting Compound

Silicone Potting Compound

aging resistant thermal conductive glue

Product Description

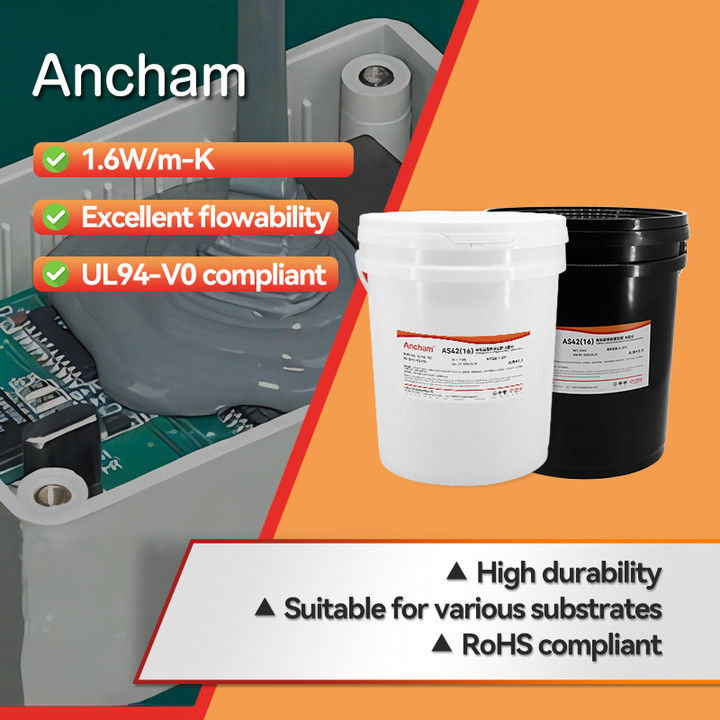

25KG Gray Electronic Thermal Conductive Silicone Potting Compound With UL94-V0

FEATURES

1. Thermal conductivity 1.6W/m·K.

2. Low viscosity, excellent flowability.

3. Good resistance to environmental aging, high and low temperature.

4. Flame retardancy in accordance with UL94-V0.

5. Halogen free, RoHS, REACH compliant.

APPLICATIONS

1. Power modules, power supply modules, power batteries, automotive electronics, sensors, communication control equipment potting applications.

2.Sealing protection for heat-generating semiconductors or magnetic components with heat dissipation needs.

TECHNICAL DATA

TYPICAL PROPERTIES	AS42 (16)
Mixing Ratio @ 25℃	1:1
Appearance	Gray
Viscosity @ 25℃	3000±1000 mPa.s
Specific Gravity @ 25℃	2.35±0.1 g/cm^3
Cure Schedule @ 2cm	Initial cure 4~6h @ 25℃ Full cure 24~48h @ 25℃ Full cure 30min @ 80℃
Hardness	65±10 Shore 00
Thermal Conductivity	1.6±0.1 W/m·K
Useful Temperature Ranges	-50~200℃
Dielectric Strength	12 kV/mm
Volume Resistivity	7.1x10^13 Ω.cm
Shelf Life (8~28℃)	6 months

Product Overview
This two-component silicone potting compound is designed for thermal conductivity and complies with UL94-V0 flammability standards. It can be cured at either room temperature or elevated temperatures, forming an elastic, thermally conductive insulating gel.

Key Features

Curing Flexibility: Can be cured at room temperature or high temperature, allowing for versatile application methods.
Elastic Insulating Gel: Cures into a flexible gel that provides effective thermal conductivity and insulation.

Performance Characteristics

Low Viscosity: The compound features low viscosity, ensuring excellent flowability, which is ideal for filling small gaps in electronic assemblies.
Temperature Range: Maintains stable performance across a wide temperature range of -40 to 200℃, demonstrating resilience against extreme thermal conditions.

Durability

Impact Resistance: The compound is designed to withstand both high and low temperature impacts without detaching from the shell, ensuring long-lasting protection for electronic components.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(82.00%),Southeast Asia(10.00%),North
America(4.00%),South America(1.20%),Eastern Europe(1.00%),Mid East(0.80%),Western Europe(0.50%),Southern Europe(0.50%). There are
total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Epoxy/Polyurethane/Acrylic Adhesive,Silicone Sealant,Potting Compound,Thermally Conductive adhesive,Conformal Coating
