Electrical Insulating UL94-V0 Conformal Coating Adhesive PCB Protection Coating

Brand Name:	Ancham
Model Number:	AS35(50)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0 RoHS

Type:

Electronic Adhesive

Color:

Clear

Flame Resistance:

UL94V-0

Viscosity @ 25℃:

850±150 MPa.s

Country Of Origin:

China

Packaging Details:

5kg 20kg

Supply Ability:

50000kg

Highlight:

UL94-V0 Conformal Coating

Electrical Insulating pcb protection coating

adhesive pcb protection coating

Product Description

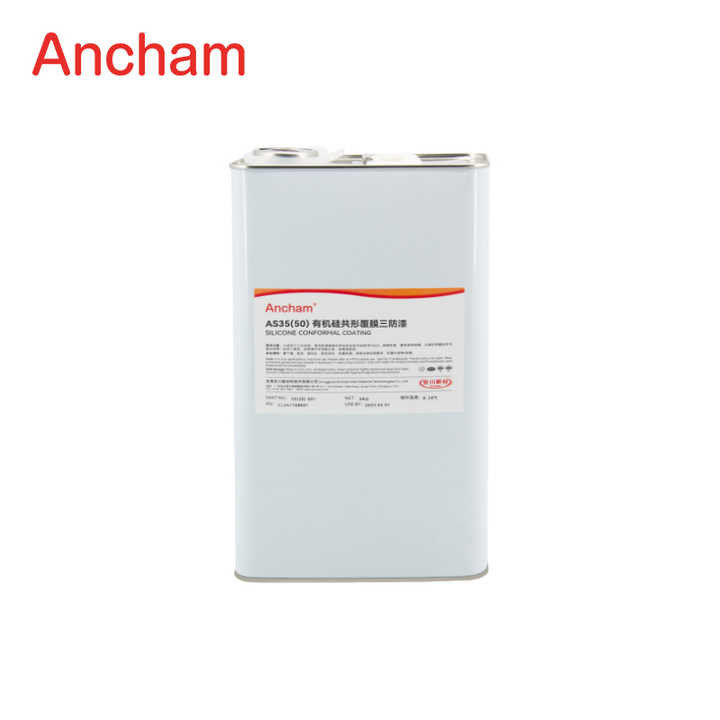

5KG Clear Electrical Insulating Silicone Conformal Coating With Good Adhesion

DESCRIPTION

This one-component silicone conformal coating offers excellent electrical insulation with strong adhesion. Its low viscosity ensures smooth flow and even thick-layer application, while its superior wetting properties enhance substrate coverage. The coating eliminates bubbles easily and cures at room temperature or with heat for faster results, leaving a smooth, bubble-free finish.

Compliant with RoHS (EU) and UL 94-V0 flammability standards, it is ideal for protecting circuit boards in:

Household appliances
Communication & industrial control equipment
Automotive electronics
Power tools
New energy systems & other electrical products

FEATURES

1. No solvent.

2. Low modulus, low stress.

3. Excellent electrical insulation properties.

4. Excellent high and low temperature resistance.

5. Support fluorescence detection.

6. Complies with UL94 V0.

APPLICATIONS

Used for coating protection of various circuit systems, porous substrates and printed circuit boards.

TECHNICAL DATA

TYPICAL PROPERTIES	AS35(50)
Appearance	Clear (with fluorescence)
Specific Gravity @ 25℃	1.0±0.05 g/cm^3
Viscosity @ 25℃	850±150 mPa.s
Recommended Film Thickness	50-200um
Hardness	30±5 Shore A
Adhesion	0
Self-Extinguishing	UL94-V0
Useful Temperature Ranges	-50~200℃
Dielectric Strength	≥20 kV/mm
Volume Resistivity	7.0x10^13 Ω.cm
Shelf Life (8~28℃)	6 moths
