Aging Resistant Silicone Thermal Potting Thermally Conductive Potting Epoxy

Brand Name:	Ancham
Model Number:	AS42(11)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0 RoHS REACH

Mix Ratio:

10:1

Operating Temperature Range:

-40°C To 200°C

Thermal Conductivity:

0.7 W/m-K

Appearance:

Grey

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

25kg:2.5kg

Supply Ability:

50000kg/month

Highlight:

aging Resistant Thermal Potting

Silicone Thermal Potting

Grey thermally conductive potting epoxy

Product Description

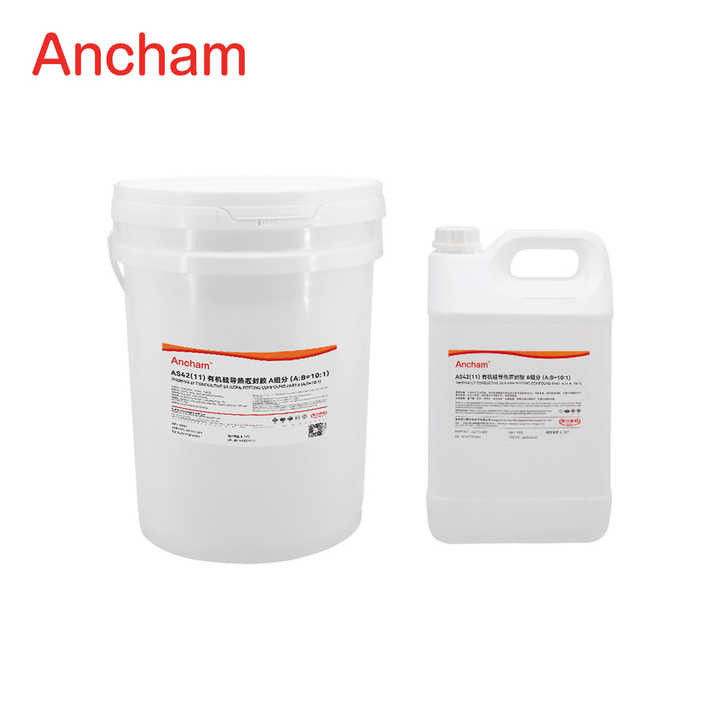

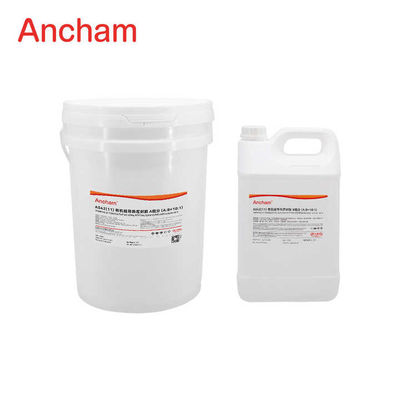

AB Gray Electronic Silicone Potting Compound Thermally Conductive Glue.

DESCRIPTION

Two-component silicone thermally conductive potting compound, fast curing, curing to form an elastic thermally conductive insulating gel, good adhesion to plastics and metals. High and low temperature resistance, good impact resistance, -40 to 200℃ temperature range of stable performance.

FEATURES

1. Short curing time.

2. No corrosion to the substrate.

3. Thermal conductivity 0.7W/m·K.

4. Excellent electrical insulation

5. Resistant to aging.

6. Complies with UL94-V0.

7. Complies with RoHS, REACH.

APPLICATIONS

1. Heating power module, power supply module potting.

2. Automotive OBC, DC module and other encapsulation protection.

3. Photovoltaic, wind energy industry connectors, inverters and other control modules potting.

TECHNICAL DATA

TYPICAL PROPERTIES	AS42(11)
Mixing Ratio @ 25℃	10:1
Appearance	Gray
Viscosity @ 25℃	3000±1000 mPa.s
Specific Gravity @ 25℃	1.8±0.05 g/cm^3
Cure Schedule @ 2cm	Initial cure time 4~6h @ 25℃ Full cure time 168h @ 25℃
Hardness	55±5 Shore 00
Thermal Conductivity	0.7 W/m·K
Useful Temperature Ranges	-40~200 ℃
Dielectric Strength	≥20 kV/mm
Volume Resistivity	5.18x10^14 Ω.cm
Shelf Life (8~28℃)	6 moths
