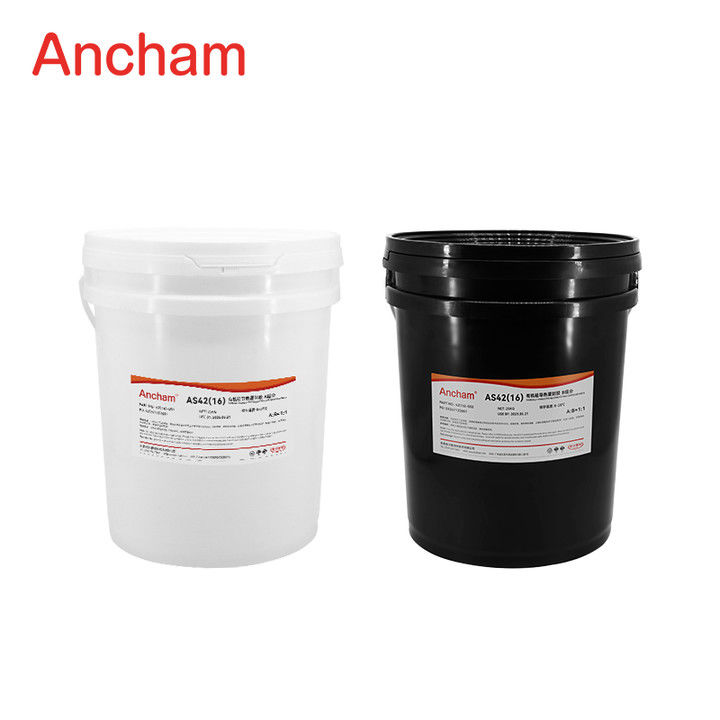

UL94V0 Thermal Potting Conductive Silicone Potting 12kV/Mm Epoxy Resin Compound

UL94V0 Thermal Potting Conductive Silicone Potting 12kV/Mm Epoxy Resin Compound

Brand Name: Ancham
Model Number: AS42(16)
MOQ: 100kg
Price: NA
Payment Terms: T/T
Supply Ability: 50000kg/month
Detail Information
Place of Origin:
China
Certification:
UL94-V0 RoHS REACH
Mix Ratio:
1:1
Thermal Conductivity:
1.6±0.1 W/m-K
Hardness:
65±10 Shore 00
Dielectric Strength:
12 KV/mm
Type:
Electronic Adhesive
Country Of Origin:
China
Packaging Details:
25kg
Supply Ability:
50000kg/month
Highlight:

UL94V0 Thermal Potting

,

Thermal Potting 12kV/mm

,

adhesive potting epoxy resin

Product Description
25KG Gray Electronic Thermal Conductive Silicone Potting Compound With UL94-V0

FEATURES
1. Thermal conductivity 1.6W/m·K.
2. Low viscosity, excellent flowability.
3. Good resistance to environmental aging, high and low temperature.
4. Flame retardancy in accordance with UL94-V0.
5. Halogen free, RoHS, REACH compliant.

APPLICATIONS
1. Power modules, power supply modules, power batteries, automotive electronics, sensors, communication control equipment potting applications.
2.Sealing protection for heat-generating semiconductors or magnetic components with heat dissipation needs.

TECHNICAL DATA
TYPICAL PROPERTIES AS42 (16)
Mixing Ratio @ 25℃ 1:1
Appearance Gray
Viscosity @ 25℃ 3000±1000 mPa.s
Specific Gravity @ 25℃ 2.35±0.1 g/cm^3
Cure Schedule @ 2cm Initial cure 4~6h @ 25℃
Full cure 24~48h @ 25℃
Full cure 30min @ 80℃
Hardness 65±10 Shore 00
Thermal Conductivity 1.6±0.1 W/m·K
Useful Temperature Ranges -50~200℃
Dielectric Strength 12 kV/mm
Volume Resistivity 7.1x10^13 Ω.cm
Shelf Life (8~28℃) 6 moths


1. Basic Specifications

  • Package: 25KG

  • Type: Two-component silicone

  • Color: Gray

  • Certification: UL94-V0

2. Curing Properties

  • Curing options: Room temperature or high temperature

  • Cured form: Elastic thermal conductive gel

  • Viscosity: Low

  • Flowability: Excellent

  • Filling capacity: Suitable for small gaps

3. Thermal Performance

  • Operating range: -40℃ to 200℃

  • Stability: Resists thermal shock

  • Adhesion: No delamination from shells

4. Electrical Properties

  • Function: Thermal conductive insulation

5. Key Features

  • Maintains performance under extreme temperatures

  • Provides reliable encapsulation protection

  • Ensures stable thermal management
