Photovoltaic Adhesive
Created with Pixso.

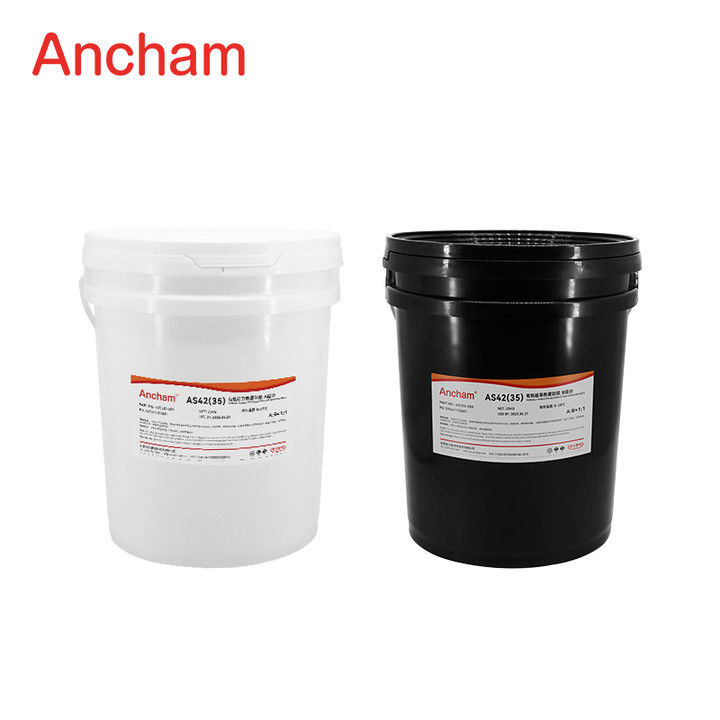

3g/Cm3 Electrically Conductive Potting Compound Silicone Thermal Potting Material

3g/Cm3 Electrically Conductive Potting Compound Silicone Thermal Potting Material

Brand Name: Ancham
Model Number: AS42(35)
MOQ: 100kg
Price: NA
Payment Terms: T/T
Supply Ability: 50000kg/month
Detail Information
Place of Origin:
China
Certification:
UL94-V0 RoHS REACH
Thermal Conductivity:
3.8±0.1 W/m-K
Viscosity @ 25℃:
12500±2500 MPa.s
Specific Gravity @ 25℃:
3.0±0.1 G/cm^3
Hardness:
25±5 Shore A
Type:
Electronic Adhesive
Country Of Origin:
China
Packaging Details:
25kg
Supply Ability:
50000kg/month
Highlight:

3g/cm3 electrically conductive potting compound

,

silicone thermal potting material

,

electrically conductive potting compound silicone

Product Description
25KG Pink Electronic Thermally Conductive Silicone Potting Compound

DESCRIPTION

1. Two-Component System
This potting compound consists of two components that, when combined, create a highly effective solution for thermal management in electronic applications.

2. Low Viscosity
The formulation features low viscosity, which enhances its ability to flow into small gaps and complex geometries, ensuring thorough coverage and protection.

3. Low Stress Characteristics
Designed to minimize mechanical stress, this silicone potting compound protects sensitive electronic components from damage during operation and environmental changes.

4. Excellent Flowability
Its superior flowability allows for easy application, making it ideal for potting capacitors, transformers, and other intricate electrical components.

5. High Thermal Conductivity
With a thermal conductivity rating of 3.8 W/m·K, this compound meets the demanding thermal management needs of power adapters and various electronic devices, providing effective insulation and heat dissipation.



FEATURES
1. Thermal conductivity 3.8W/m·K.
2. Low stress.
3. Excellent environmental aging resistance, high and low temperature resistance.
4. Flame retardancy in accordance with UL94-V0.
5. RoHS, REACH compliant, halogen free.

APPLICATIONS
1. Potting applications with high thermal conductivity and insulation requirements such as hydrology, weather sensors, power modules, power supply modules, headlight modules, OBCs, DC-DC modules, etc.

TECHNICAL DATA
TYPICAL PROPERTIES AS42(35)
Mixing Ratio @ 25℃ 1:1
Appearance Pink
Viscosity @ 25℃ 12500±2500 mPa.s
Specific Gravity @ 25℃ 3.0±0.1 g/cm^3
Cure Schedule @ 2cm Initial cure 3~5h @ 25℃
Full cure 24h @ 25℃
Full cure 20~30min @ 80℃
Hardness 25±5 Shore A
Thermal Conductivity 3.8±0.1 W/m·K
Useful Temperature Ranges -50~200℃
Dielectric Strength ≥10 kV/mm
Volume Resistivity 2.89x10^12 Ω.cm
Shelf Life (8~28℃) 6 moths

FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(82.00%),Southeast Asia(10.00%),North
America(4.00%),South America(1.20%),Eastern Europe(1.00%),Mid East(0.80%),Western Europe(0.50%),Southern Europe(0.50%). There are
total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Epoxy/Polyurethane/Acrylic Adhesive,Silicone Sealant,Potting Compound,Thermally Conductive adhesive,Conformal Coating
4. why should you buy from us not from other suppliers?
Ancham's electronic adhesive products involve epoxy resins, acrylates, urethanes, and silicones, covering bonding, sealing,
thermal management, potting, and coating protection. 100+ Testing equipment 150+ Proven Products 3500 Tons annual capacity
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,German,French,Korean
