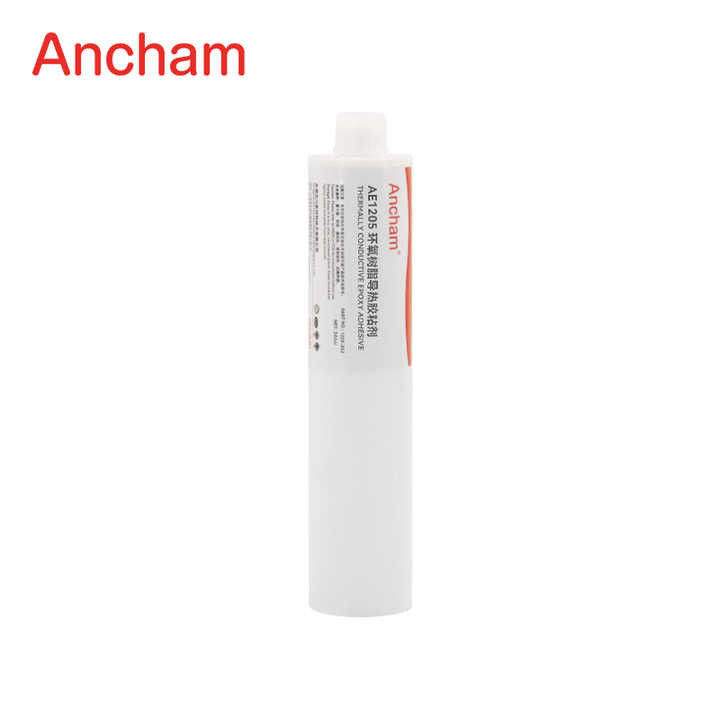

300ML Electronic Thermal Epoxy Bonding Adhesive 60min Fast Curing Glue

Brand Name:	Ancham
Model Number:	AE1205
MOQ:	100
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS

Appearance:

Grey Paste

Curing Time:

60min @ 130℃ 30min @ 150℃

Shear Strength @ 25 ℃:

10 Mpa Sandblasted Aluminum

Thermal Conductivity:

5.0 W/m·K

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

30ml 300ml

Supply Ability:

50000kg/month

Highlight:

0.3L Drive Motor Adhesive

Epoxy Bonding Adhesive 60min

0.3L Epoxy Bonding Adhesive

Product Description

300ML Gray Electronic Thermal Epoxy Bonding Adhesive Fast Curing Glue

DESCRIPTION

High thermal conductivity one-component epoxy adhesive, no mixing, curing at high temperature, can be cured into a tough and strong structural bonding, with excellent impact resistance, mechanical and electrical properties, able to resist a variety of solvents and chemicals.

FEATURES

1. Thermal conductivity 5.0W/m·K.

2.Thixotropic paste.

3. Fast curing.

4.Resistant to mechanical shock.

5. High temperature and aging resistance.

6. Excellent water and solvent resistance.

7.RoHS and REACH compliant, halogen free.

APPLICATIONS

1. Electrical and electronic circuit components, heat dissipation modules, device applications.

2. Bonding and fixing of core skeleton or magnetic core of high and low frequency transformers.

TECHNICAL DATA

TYPICAL PROPERTIES	AE1205
Appearance	Gray
Specific Gravity @ 25 ℃	3.3±0.1 g/cm^3
Viscosity @ 25 ℃	Paste
Hardness	88±3 Shore D
Cure Mechanism	60min @ 130℃ 30min @ 150℃
Thermal Conductivity	5.0 W/m·K
Elongation	1%
Useful Temperature Ranges	-40~150 ℃
Lap Shear Strength @ 25 ℃	10 Mpa Sandblasted Aluminum
Volume Resistivity	1.0x10^13 Ω.cm
Shelf Life (-20～-10℃)	6 moths

FAQ

1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(82.00%),Southeast Asia(10.00%),North
America(4.00%),South America(1.20%),Eastern Europe(1.00%),Mid East(0.80%),Western Europe(0.50%),Southern Europe(0.50%). There are
total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Epoxy/Polyurethane/Acrylic Adhesive,Silicone Sealant,Potting Compound,Thermally Conductive adhesive,Conformal Coating
4. why should you buy from us not from other suppliers?
Ancham's electronic adhesive products involve epoxy resins, acrylates, urethanes, and silicones, covering bonding, sealing,
thermal management, potting, and coating protection. 100+ Testing equipment 150+ Proven Products 3500 Tons annual capacity
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,German,French,Korean
