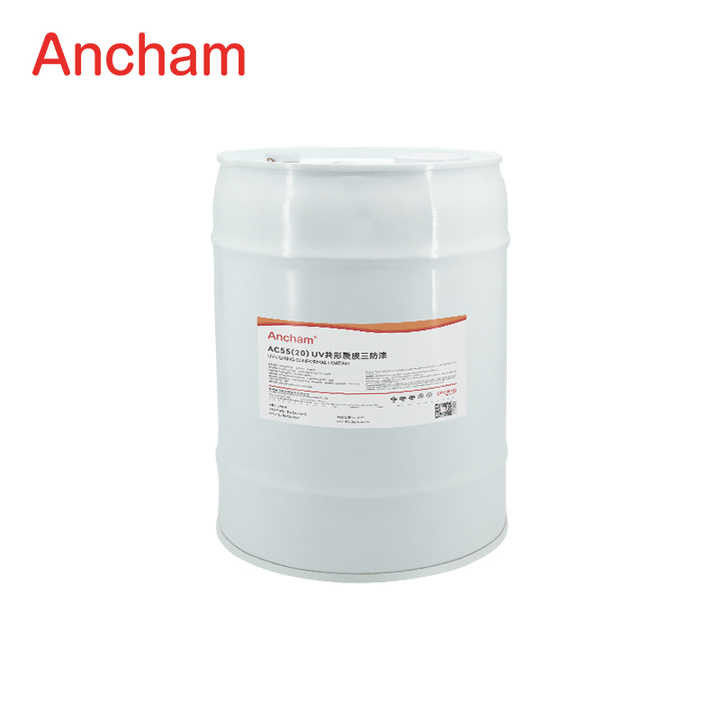

20KG Electronic Acrylic Conformal Coating Clear UV Moisture Curing PCB Coating

Name: 20KG Electronic Acrylic Conformal Coating Clear UV Moisture Curing PCB Coating
Brand: DongGuan Ancham New Material Technologies Co.，Ltd.
SKU: AC55(20)
Availability: InStock

Brand Name:	Ancham
Model Number:	AC55(20)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0

Chemical Composition:

Acrylic

Color:

Transparent Yellow

Flame Resistance:

UL94V-0

Viscosity @ 25℃:

250±150 MPa.s

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

5kg 20kg

Supply Ability:

50000kg

Highlight:

20KG Conformal Coating

Electronic acrylic conformal coating

Curing pcb coating

Product Description

20KG Clear UV/Moisture Curing Electronic Acrylic Conformal Coating for PCB Protection

DESCRIPTION

One-component, dual-cure coating material with rapid UV light curing and moisture curing of un-UV-illuminated coatings. Fluoresces under UV light for easy coating layer inspection.AC55(20) has excellent chemical and moisture resistance.

FEATURES

1. Dual curing of UV/moisture.

2. Support fluorescence detection.

3. Self-leveling

4. Excellent chemical resistance, high temperature and high humidity resistance.

5. Flame retardant in accordance with UL94-V0.

APPLICATIONS

Used for coating protection of various circuit systems, porous substrates and printed circuit boards.

Ancham has a complete system certification and sufficient production capacity support, long-term technical exploration and experience accumulation, so that Ancham mastered the key technology of industrial adhesives, Ancham reserves of technical achievements have been effectively verified, has been unanimously recognized by many top brand customers.

TECHNICAL DATA

TYPICAL PROPERTIES	AC55(20)
Appearance	Transparent yellow (with fluorescence)
Specific Gravity @ 25℃	1.08±0.5 g/cm^3
Viscosity @ 25℃	250±150 mPa.s
Recommended Film Thickness	50~125um
Hardness	75±5 Shore D
Adhesion	0
Self-Extinguishing	UL94-V0
Useful Temperature Ranges	-40~130℃
Dielectric Strength	＞20 kV/mm
Volume Resistivity	2.0x10^14 Ω.cm
Shelf Life (8~28℃) Shun Light	6 months

FAQ

1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(82.00%),Southeast Asia(10.00%),North America(4.00%),South America(1.20%),Eastern Europe(1.00%),Mid East(0.80%),Western Europe(0.50%),Southern Europe(0.50%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Epoxy/Polyurethane/Acrylic Adhesive,Silicone Sealant,Potting Compound,Thermally Conductive adhesive,Conformal Coating
4. why should you buy from us not from other suppliers?
Ancham's electronic adhesive products involve epoxy resins, acrylates, urethanes, and silicones, covering bonding, sealing, thermal management, potting, and coating protection. 100+ Testing equipment 150+ Proven Products 3500 Tons annual capacity
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,German,French,Korean
