Moisture Curing Chemical Resistance PCB Coating For Electronics

Brand Name:	Ancham
Model Number:	AC55(20)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0

Adhesion:

Shelf Life:

6months

Hardness:

75±5 Shore D

Recommended Film Thickness:

50~125um

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

5kg 20kg

Supply Ability:

50000kg

Highlight:

Moisture Curing pcb coating waterproof

chemical resistance pcb coating waterproof

125um waterproof coating for electronics

Product Description

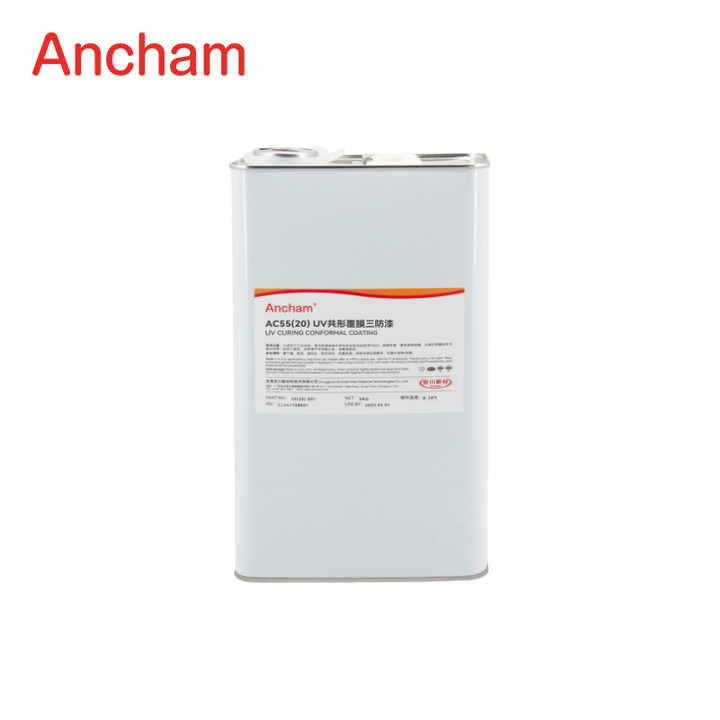

5KG Clear UV/Moisture Curing Electronic Acrylic Conformal Coating With UL94-V0

Product Highlights:
✔ Dual-Cure Technology – Rapid UV curing for fast processing + secondary moisture curing for shadowed areas
✔ UV-Fluorescent – Enables easy visual inspection of coating coverage under UV light
✔ UL94-V0 Certified – Meets strict flame-retardant safety standards
✔ Superior Protection – Excellent moisture & chemical resistance for harsh environments

Technical Specifications:

Type: Single-component acrylic
Curing: UV light (instant) + ambient moisture (secondary)
Compliance: UL94-V0 flammability rating
Inspection Aid: Fluoresces under UV for quality control

Key Benefits:

Fast production cycles with immediate UV curing
Complete coverage even in hard-to-reach areas via moisture curing
Reliable protection against humidity, solvents, and contaminants
Quality assurance through UV-visible coating verification

FEATURES

1. Dual curing of UV/moisture.

2. Support fluorescence detection.

3. Self-leveling

4. Excellent chemical resistance, high temperature and high humidity resistance.

5. Flame retardant in accordance with UL94-V0.

APPLICATIONS

Used for coating protection of various circuit systems, porous substrates and printed circuit boards.

TECHNICAL DATA

TYPICAL PROPERTIES	AC55(20)
Appearance	Transparent yellow (with fluorescence)
Specific Gravity @ 25℃	1.08±0.5 g/cm^3
Viscosity @ 25℃	250±150 mPa.s
Recommended Film Thickness	50~125um
Hardness	75±5 Shore D
Adhesion	0
Self-Extinguishing	UL94-V0
Useful Temperature Ranges	-40~130℃
Dielectric Strength	＞20 kV/mm
Volume Resistivity	2.0x10^14 Ω.cm
Shelf Life (8~28℃) Shun Light	6 months

FAQ

1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(82.00%),Southeast Asia(10.00%),North America(4.00%),South America(1.20%),Eastern Europe(1.00%),Mid East(0.80%),Western Europe(0.50%),Southern Europe(0.50%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Epoxy/Polyurethane/Acrylic Adhesive,Silicone Sealant,Potting Compound,Thermally Conductive adhesive,Conformal Coating
4. why should you buy from us not from other suppliers?
Ancham's electronic adhesive products involve epoxy resins, acrylates, urethanes, and silicones, covering bonding, sealing, thermal management, potting, and coating protection. 100+ Testing equipment 150+ Proven Products 3500 Tons annual capacity
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,German,French,Korean
