20KG Electronic Conformal Coating PCB Conformal Coating Types

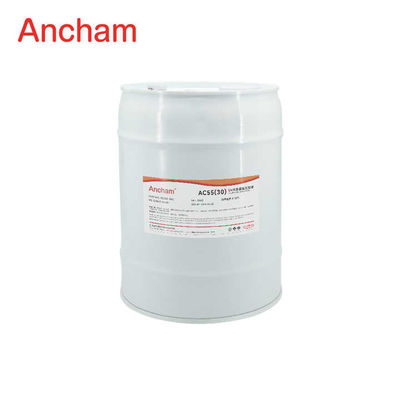

Name: 20KG Electronic Conformal Coating PCB Conformal Coating Types
Brand: DongGuan Ancham New Material Technologies Co.，Ltd.
SKU: AC55(30)
Availability: InStock

Brand Name:	Ancham
Model Number:	AC55(30)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL94-V0

Appearance:

Clear Fluid

Volume Resistivity:

2.1x10^12 Ω.cm

Adhesion:

Viscosity @ 25℃:

300±150 MPa.s

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

5kg 20kg

Supply Ability:

50000kg

Highlight:

150mPa.s Conformal Coating

450mPa.s pcb conformal coating types

pcb conformal coating types

Product Description

20KG Clear Acrylic Electronic Conformal Coating UV/Moisture CuringWith UL94-V0

DESCRIPTION

20KG Clear Acrylic Electronic Conformal Coating UV/Moisture CuringWith UL94-V0. One-component, dual-cure coating material with rapid UV light curing and moisture curing of un-UV-illuminated coatings. Fluoresces under UV light for easy coating layer inspection.AC55(30) has excellent chemical and moisture resistance.

FEATURES

1.Dual curing of UV/moisture.

2.Support fluorescence detection.

3.Low viscosity, benzene-free.

4.Excellent chemical resistance, high temperature and high humidity resistance.

5.Flame retardant in accordance with UL94-V0.

APPLICATIONS

Used for coating protection of various circuit systems, porous substrates and printed circuit boards.

TECHNICAL DATA

TYPICAL PROPERTIES	AC55(30)
Appearance	Clear (with fluorescence)
Specific Gravity @ 25℃	1.05±0.5 g/cm^3
Viscosity @ 25℃	300±150 mPa.s
Recommended Film Thickness	25~125um
Hardness	70±5 Shore D
Adhesion	0
Self-Extinguishing	UL94-V0
Useful Temperature Ranges	-40~125℃
Dielectric Strength	＞14 kV/mm
Volume Resistivity	2.1x10^12 Ω.cm
Shelf Life (8~28℃) Shun Light	6 months

FAQ

1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(82.00%),Southeast Asia(10.00%),North America(4.00%),South America(1.20%),Eastern Europe(1.00%),Mid East(0.80%),Western Europe(0.50%),Southern Europe(0.50%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Epoxy/Polyurethane/Acrylic Adhesive,Silicone Sealant,Potting Compound,Thermally Conductive adhesive,Conformal Coating
4. why should you buy from us not from other suppliers?
Ancham's electronic adhesive products involve epoxy resins, acrylates, urethanes, and silicones, covering bonding, sealing, thermal management, potting, and coating protection. 100+ Testing equipment 150+ Proven Products 3500 Tons annual capacity
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,German,French,Korean
