Thermal Interface Material Conductive Electronic polyurethane potting compound for electronics

Brand Name:	Ancham
Model Number:	AP83(79)
MOQ:	120KG
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS Reach

Flame Rating:

V0 UL-94

Temperature Range:

-55~130℃

Viscosity @ 25℃:

1450±200 MPa.s

Curing Time:

Initial Cure Time 10~15min @ 25˚C Full Cure Time 24h @ 25℃

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

25kg:5kg

Supply Ability:

50000kg/month

Highlight:

Gray Thermal Interface Material

Electronic Thermal Interface Material

Conductive polyurethane potting compound for electronics

Product Description

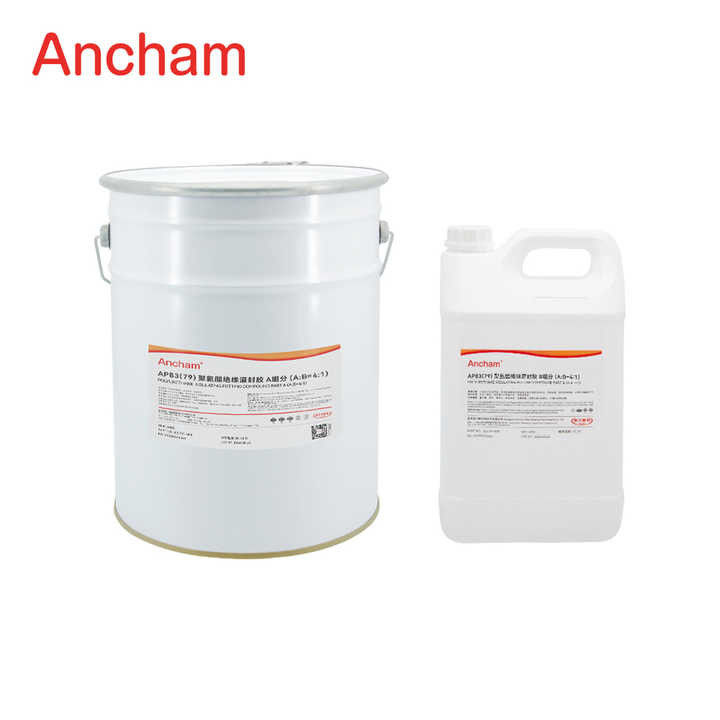

AB Gray Thermally Conductive Electronic Polyurethane Potting Compound

FEATURES

1. Good flowability.

2. Good adhesion.

3. Excellent environmental resistance.

4. Comply with RoHS, Reach.

5. UL94 V0 compliant.

APPLICATIONS

1. Potting of capacitors, wire harnesses, connectors, circuit boards.

2. Potting protection for transformers, instrumentation, ignition controllers, sensors.

3.Mmotor, power tool control module, power module insulation protection.

TECHNICAL DATA

TYPICAL PROPERTIES	AP83 (79)
Mixing Ratio @ 25℃	4:1
Appearance	Gray
Viscosity @ 25℃	1450±200 mPa.s
Specific Gravity @ 25℃	1.55±0.05 g/cm^3
Cure Schedule @ 150g	Initial cure time 10~15min @ 25˚C Full cure time 24h @ 25℃
Hardness	79±3 Shore D
Lap Shear Strength @ 25℃	＞7 Mpa ABS/ABS
Useful Temperature Ranges	-55~130℃
Dielectric Strength	≥20 kV/mm
Volume Resistivity	2.9x10^12 Ω.cm
Shelf Life (15~25℃)	6 months

1. Two-Component System
This potting compound is a two-component polyurethane formulation, specifically designed for effective thermal conductivity and insulation.

2. Low Heat Release
It features low heat release during curing, contributing to a safer application process and minimizing thermal stress on components.

3. High Strength and Adhesion
The compound provides good strength and high adhesion, making it suitable for various substrates and ideal for automated sizing processes.

4. Excellent Electrical Insulation
It delivers superior gas insulation performance, ensuring reliable electrical protection for sensitive electronic components.

5. Wide Temperature Range and Flame Retardant
With an operational temperature range of -55 to 130℃, this potting compound is flame retardant and complies with UL94 V0 standards, enhancing safety in various applications.
