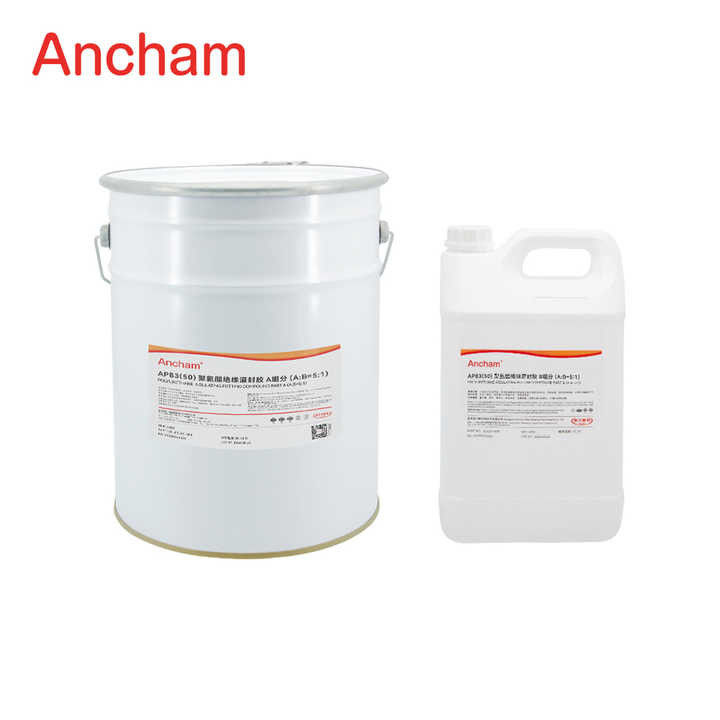

Thermal Interface Material Self Leveling Polyurethane Potting PU Glue

Name: Thermal Interface Material Self Leveling Polyurethane Potting PU Glue
Brand: DongGuan Ancham New Material Technologies Co.，Ltd.
SKU: AP83(50)
Availability: InStock

Brand Name:	Ancham
Model Number:	AP83(50)
MOQ:	120KG
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS Reach

Mixing Ratio @ 25℃:

5:1

Hardness:

50±5 Shore D

Viscosity @ 25℃:

1100±300 MPa.s

Dielectric Strength:

≥20 KV/mm

Type:

Electronic Adhesive

Country Of Origin:

China

Packaging Details:

25kg:5kg

Supply Ability:

50000kg/month

Highlight:

50Shore D Thermal Interface Material

1100mPa.s Thermal Interface Material

1100mPa.s polyurethane potting

Product Description

AB Black Thermally Conductiv Polyurethane Potting Compound With Self-leveling

DESCRIPTION

1. Two-Component System
This potting compound is a two-component polyurethane formulation designed for effective thermal conductivity and insulation protection.

2. Excellent Adhesion
It demonstrates outstanding adhesion to a variety of substrates, including most plastics, metals, and glass, ensuring a strong bond for electronic components.

3. Stress Protection
Ideal for stress-sensitive electronic components, this compound provides reliable insulation protection, safeguarding devices from mechanical impacts.

4. Chemical Resistance
The formulation exhibits excellent chemical resistance, making it suitable for harsh environments and ensuring long-lasting performance.

5. Low Dielectric Constants
AP83(50) maintains low and stable dielectric constants across a wide temperature range, enhancing its suitability for diverse electronic applications.

FEATURES

1. Solvent free.

2. Good flowability.

3. Excellent adhesion.

4. Excellent water resistance and environmental aging resistance.

5. Comply with RoHS and Reach.

APPLICATIONS

1. Potting of capacitors, wire harnesses, connectors, circuit boards.

2. Potting protection for transformers, instrumentation, ignition controllers, sensors.

3. motor motor, power tool control module, power module insulation protection.

TECHNICAL DATA

TYPICAL PROPERTIES	AP83(50)
Mixing Ratio @ 25℃	5:1
Appearance	Black
Viscosity @ 25℃	1100±300 mPa.s
Specific Gravity @ 25℃	1.45±0.05 g/cm^3
Cure Schedule @ 150g	Initial cure time 9~15h @ 25˚C / 0.5~1h @ 80℃ Full cure time 168h @ 25℃
Hardness	50±5 Shore D
Lap Shear Strength @ 25℃	7 Mpa ABS/ABS
Useful Temperature Ranges	-40~150℃
Dielectric Strength	≥20 kV/mm
Volume Resistivity	3.6x10^13 Ω.cm
Shelf Life (15~25℃)	6 months

FAQ

1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(82.00%),Southeast Asia(10.00%),North
America(4.00%),South America(1.20%),Eastern Europe(1.00%),Mid East(0.80%),Western Europe(0.50%),Southern Europe(0.50%). There are
total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Epoxy/Polyurethane/Acrylic Adhesive,Silicone Sealant,Potting Compound,Thermally Conductive adhesive,Conformal Coating
4. why should you buy from us not from other suppliers?
Ancham's electronic adhesive products involve epoxy resins, acrylates, urethanes, and silicones, covering bonding, sealing,
thermal management, potting, and coating protection. 100+ Testing equipment 150+ Proven Products 3500 Tons annual capacity
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,German,French,Korean
