RoHS Good Adhesion EV Charger Adhesive Thermal Conductive RTV Silicone Glue

RoHS Good Adhesion EV Charger Adhesive Thermal Conductive RTV Silicone Glue

Brand Name:	Ancham
Model Number:	AS32(15)
MOQ:	100pieces
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS REACH

Curing Time:

24 Hours

Type:

Electronic Adhesive

Compatibility:

EV Charger

Application:

Indoor/Outdoor

Country Of Origin:

China

Dielectric Strength:

≥12 KV/mm

Packaging Details:

300ml

Supply Ability:

50000kg

Highlight:

RoHS EV Charger Adhesive

Good Adhesion rtv silicone glue

Indoor rtv silicone glue

Product Description

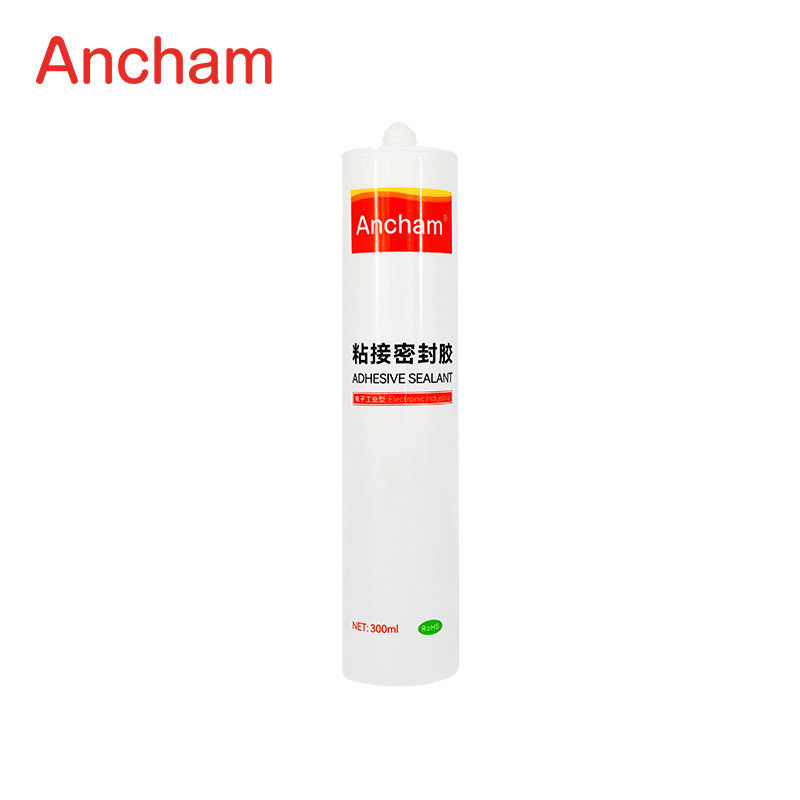

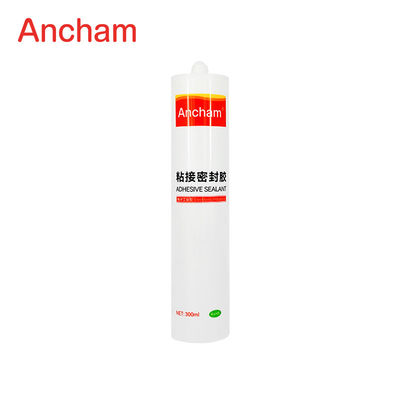

300ML White Good Adhesion Thermal Conductive Electronic RTV Silicone Adhesive

Description

One-component, thermally conductive, neutral dealcoholized silicone adhesive sealant that cures with moisture at room temperature. It can be easily extruded under pressure prior to curing. After curing, it forms an elastic silicone rubber with strong structural bonds and provides excellent electrical insulation properties. The product has excellent adhesion to metals, plastics, ceramics, glass, etc., without the use of primers, and is non-corrosive to metals.

Features

1. Thermal conductivity of 1.5W/m·K.

2. One-component, no need to mix.

3. Non-corrosive to metals.

4. Curing at room temperature, short tack free time, low odor during curing process.

5. Excellent adhesion to most of materials in the absence of primers.

6. Excellent resistance to high and low temperatures.

7. Excellent mechanicalproperties and chemical stability.

8. Flame retardant complies with UL 94-V0.

9. Compliant with the EU reqirements of RoHS and REACH.

Applications

1. Structural bonding or sealing applications for sensors and connectors, etc., where thermal conductivity is required.

2. Thermally conductive, bonding and insulation applications for heat dissipation components for electronic devices, such as PTC thermistors .

3. Reinforcement and thermal conductivity applications for various power control system components.

TECHNICAL DATA

TYPICAL PROPERTIES	AS32(15)
Appearance	Gray
Viscosity @ 25 ℃	Paste
Specific Gravity @ 25 ℃	2.1±0.1 g/cm^3
Hardness	70±5 Shore A
Tack-Free Time (25 ℃ /60%RH)	2~6 min
Cure Mechanism	168h @ 25℃ 60%RH 3～5mm
Thermal Conductivity	1.55±0.05 W/m·K
Elongation	≥50%
Useful Temperature Ranges	-50~200 ℃
Lap Shear Strength @ 25 ℃	2~3 MPa PC/PC 2~3 MPa Sandblasted Aluminum
Dielectric Strength	≥12 kV/mm
Volume Resistivity	1.0x10^14 Ω.cm
Shelf Life	6 months @ 8~28 ℃
