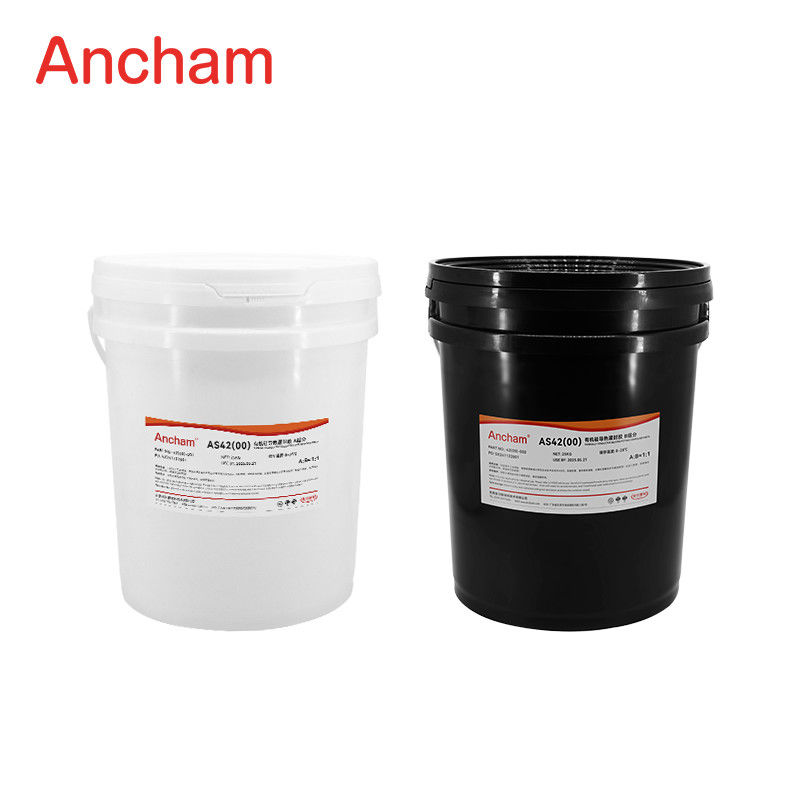

25KG AB Potting Compound Thermally Conductive Silicone Adhesive

25KG AB Potting Compound Thermally Conductive Silicone Adhesive

Brand Name:	Ancham
Model Number:	AS42(00)
MOQ:	100kg
Price:	NA
Payment Terms:	T/T
Supply Ability:	50000kg/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS REACH UL94-V0

Hardness:

65±10 Shore 00

Type:

Electronic Adhesive

Color:

Light Gray

Specific Gravity @ 25 ℃:

2.8±0.1 G/cm^3

Country Of Origin:

China

Packaging Details:

25kg

Supply Ability:

50000kg/month

Highlight:

2.8g/cm3 Potting Compound

adhesive Potting Compound

thermally conductive silicone adhesive

Product Description

25KG Gray Electronic Thermal Conductive Silicone Potting Compound.

DESCRIPTION

Two-component silicone potting compound that cures rapidly at high temperatures, produces low-stress cured objects, and offers excellent flexibility. Offers a thermal conductivity of 2.5 W/m·K, excellent electrical insulation, and superior resistance to temperature variations and weather conditions. Capable of automated production and specifically designed for electronic potting applications.

FEATURES

1.Thermal conductivity 2.5W/m-K.

2.Low contact thermal resistance.

3.Low stress.

4.Exceptional resistance to environmental aging and extreme high and low temperatures.

5.Meets UL94-V0 flame retardancy standards, halogen-free, and compliant with RoHS and REACH regulations.

APPLICATIONS

1. Power modules, power supply modules, power batteries, automotive electronics, sensors, communication control equipment potting applications.

2.Sealing protection for heat-generating semiconductors or magnetic components with heat dissipation needs.

TECHNICAL DATA

TYPICAL PROPERTIES	AS42(00)
Mixing Ratio @ 25 ℃	1:1
Appearance	Light gray
Viscosity @ 25 ℃	6000±1000 mPa.s
Specific Gravity @ 25 ℃	2.8±0.1 g/cm^3
Cure Schedule @ 2cm	Initial cure 4~6 h @ 25 ℃ Full cure 24~48 h @ 25 ℃ Full cure 20~30 min @ 80 ℃
Hardness	65±10 Shore 00
Thermal Conductivity	2.5±0.1 W/m·K
Useful Temperature Ranges	-50~200 ℃
Dielectric Strength	≥10 kV/mm
Volume Resistivity	7.1x10^13 Ω.cm
Shelf Life (8~28 ℃)	6 moths

FAQ

1. Who are we?
Located in Guangdong, China, we have been operating since 2002. Our primary market is the domestic sector (82.00%), with additional sales to Southeast Asia (10.00%), North America (4.00%), South America (1.20%), Eastern Europe (1.00%), the Middle East (0.80%), Western Europe (0.50%), and Southern Europe (0.50%). Our office employs a team of 51 to 100 people.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What products can you buy from us?
Epoxy/Polyurethane/Acrylic Adhesive,Silicone Sealant,Potting Compound,Thermally Conductive adhesives,Conformal Coatings
4. What makes us a better choice compared to other suppliers?
Ancham's electronic adhesive products involve epoxy resins, acrylates, urethanes, and silicones, covering bonding, sealing,
thermal management, potting, and coating protection. 100+ Testing equipment 150+ Proven Products 3500 Tons annual capacity
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,German,French,Korean
